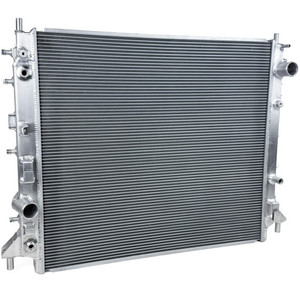

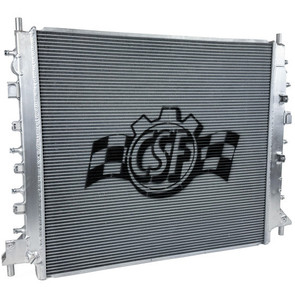

16-24 Camaro LT1/SS/ZL1 High-Performance All-Aluminum Radiator - CSF

Name: 16-24 Camaro LT1/SS/ZL1 High-Performance All-Aluminum Radiator - CSF
Brand: CSF
SKU: 7249
Price: 749 USD
Availability: InStock

Fits 2016-2024 CAMARO (LT1, SS & ZL1)

Description:

Upgrade the cooling performance and reliability of your 2016–2024 Chevrolet Camaro LT1, SS, or ZL1 with the CSF Racing High-Performance All-Aluminum Radiator, Part Number 7249. Engineered for the demands of high-performance street driving, road racing, track days, and modified LT1 and LT4 engines, this premium radiator is designed to improve heat dissipation and help combat excessive coolant temperatures and heat soak. Featuring an oversized 42mm dual-row aluminum core, CSF's exclusive B-Tube Technology, and advanced 5mm multi-louvered cooling fins, this radiator delivers a manufacturer-reported 20–25% increase in heat-transfer efficiency compared with the factory radiator. The upgraded core offers approximately 16% more core volume than the original 36mm single-row GM radiator, providing additional coolant capacity and improved thermal recovery under demanding driving conditions. Unlike the factory radiator's plastic end tanks and crimped construction, the CSF 7249 features fully TIG-welded aluminum tanks for enhanced durability and long-term reliability. An integrated four-plate transmission oil cooler provides compatibility with applicable automatic-transmission and ZL1 cooling configurations, while precision CNC-machined mounting brackets and OEM-style connections ensure a direct-fit installation using the factory fan, shroud, and mounting locations. Finished in satin aluminum and individually leak- and pressure-tested, the CSF 7249 is an excellent cooling system upgrade for Camaro owners seeking improved temperature control, increased cooling capacity, and dependable performance.

Key Features:

CSF Racing Part Number 7249
High-Performance All-Aluminum Radiator
Designed for 6th Generation Chevrolet Camaro LT1, SS, and ZL1 models
Supports naturally aspirated LT1 and supercharged LT4 V8 engines
Manufacturer-reported 20–25% increase in heat-transfer efficiency
Oversized dual-row, 42mm ultra-high-performance aluminum core
Approximately 16% greater core volume compared with the factory radiator
Upgraded from the factory 36mm single-row core design
CSF Exclusive B-Tube Technology for improved heat transfer
Advanced 5mm multi-louvered cooling fins
Increased cooling surface area for improved heat dissipation
Designed to improve coolant temperature stability and thermal recovery
Helps reduce heat soak during demanding driving conditions
Ideal for high-performance street driving, road racing, and track-day applications
Supports increased cooling demands from modified and higher-horsepower engines
Fully TIG-welded, 100% aluminum construction
Durable aluminum end tanks replace factory plastic tank construction
Integrated four-plate transmission oil cooler
Transmission oil cooler located in the driver-side end tank
CNC-machined mounting brackets
OEM-style radiator inlet and outlet connections
Direct-fit replacement utilizing factory mounting locations
Compatible with factory radiator fan and shroud assemblies
Satin aluminum finish
Individually leak and pressure tested
Developed with input from Griffin Motorsport and Chamberlain Speed
CSF Racing Two-Year Limited Manufacturer Warranty

Package Includes:

One (1) CSF Racing High-Performance All-Aluminum Radiator – Part Number 7249
Integrated Four-Plate Transmission Oil Cooler
Integrated Aluminum Mounting Brackets and OEM-Style Connections

Important Notes:

Fits 2020–2024 Chevrolet Camaro LT1 models
Fits 2016–2024 Chevrolet Camaro SS models
Fits 2017-2024 Chevrolet Camaro ZL1 models
Compatible with applicable automatic and manual transmission configurations
The integrated four-plate transmission oil cooler utilizes factory-style connections
On applicable LT1 and SS manual-transmission vehicles, the integrated transmission oil cooler can remain disconnected
CSF specifies that the integrated transmission oil cooler must be connected on ZL1 applications
Direct replacement for applicable factory GM radiator Part Numbers 86551904 and 86551905
Designed to reuse the factory radiator fan, shroud, and mounting points
Factory fan, shroud, coolant hoses, and additional vehicle-specific components are NOT included
No cutting, drilling, or permanent modifications are required for confirmed applications
This product replaces the main engine radiator and does NOT replace auxiliary radiators or supercharger charge-air heat exchangers
Professional installation is strongly recommended
The cooling system must be properly filled, bled, and checked for leaks following installation
Use coolant that meets the vehicle manufacturer's specifications
Advertised cooling efficiency improvements are based on CSF's published engineering comparisons; actual operating temperatures will vary with vehicle setup and driving conditions
Covered by CSF Racing's two-year limited manufacturer warranty, subject to manufacturer terms and conditions

Warranty

Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, for 2 years from the date of purchase to the original purchaser of the vehicle in which the radiator was originally installed. This warranty covers any parts furnished from the factory of CSF, but does not include labor and materials of any kind not furnished by CSF. This warranty does not apply to any equipment which shall have been repaired or altered outside the factory of CSF in any way so as, in the judgement of CSF, to affect its stability. This warranty does not apply to any equipment which has been subjected to misuse, negligence, or operating conditions in excess of those for which such equipment was designed. The warranty does not apply if the vehicle in which the cooling system was installed was used in commercial (including fleet), governmental, off highway or racing applications. This warranty does not cover the effects of physical or chemical properties of water or steam or other liquids or gases used in the equipment. This warranty is extended to and enforceable only by the first purchaser at retail. CSF warrants its products to be free from all defects in material and workmanship, as limited herein, shall be in lieu of and exclusive of all other warranties, expect warranties implied by law. All warranties, whether expressed or implied, including warranties of merchantability and fitness for purpose, which extended beyond the description herein, are expressly disclaimed. In order to obtain CSF’s performance of any warranty obligation, purchaser must return the part or parts to the place of purchase, with all shipping or transportation charges prepaid. If, in the judgement of CSF, this warranty does not apply to the part or parts returned to the place of purchase, then purchaser must prepay all return shipping or transportation charges from the place of purchase to purchaser, in addition to those shipping or transportation charges which purchaser shall have previously pre-paid. Purchaser’s remedy for breach of this warranty is limited to repair or replacement of any part of parts for which the examination by CSF shall disclose to have been defective. Purchaser’s remedy does not include reimbursement for any labor or material charges incurred by purchaser for removal or installation of parts, adjustments, repairs, or any other work done. Under no circumstances shall CSF be liable for any consequential or incidental damages of any kind for breach of this warranty or of any implied warranty resulting from the order or use of its products. These damages include (but are not limited to) reimbursement of original purchase price, loss of the use of vehicle, loss of time or inconvenience, towing charges, rental of a replacement vehicle and any other special, incidental, consequential, or punitive damages. This warranty is not transferrable and is automatically cancelled in the event that the vehicle in which the cooling system has been initially installed is sold, leased or otherwise sold or transferred to another owner or lease. CSF neither assumes, nor authorizes any person to issue for it, any obligation or liability other than as herein expressly stated.
