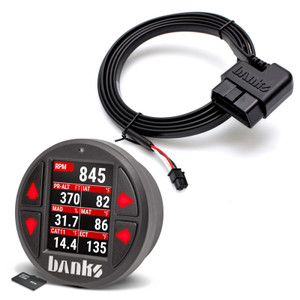

I-Dash OBII Data Pro System Gauge - Banks Power

Universal OBDII Fitment

Description:

Take complete control of your vehicle's performance monitoring and data logging with the Banks Power iDash Data Pro® Standalone System Gauge featuring Part Number 66711. Designed for 2008+ OBDII CAN-bus vehicles, the iDash Data Pro combines a customizable digital gauge, diagnostic scan tool, performance monitor, Banks device controller, and professional data logger into a compact standard 52mm (2-1/16-inch) package. Whether monitoring a daily-driven performance vehicle, towing application, turbocharged or supercharged build, or dedicated race vehicle, the iDash Data Pro provides access to critical real-time powertrain information that many factory dashboards either filter, simplify, or do not display at all. The Banks iDash Data Pro provides access to more than 300 available parameters and can read up to 80 OBDII CAN-bus Mode 01 values, with available parameters varying by vehicle. Users can display between two and eight readings simultaneously and configure up to five customizable screens, providing access to as many as 40 gauge positions at the touch of a button. Monitor parameters such as boost pressure, exhaust gas temperature, engine coolant temperature, transmission temperature, vehicle speed, air density, and numerous other available engine and vehicle values. The high-resolution display features ultra-wide viewing angles, selectable high-contrast color schemes, automatic dimming, English or Metric units, and customizable gauge layouts for a personalized monitoring experience. Unlike the standard iDash Pro, the iDash Data Pro adds advanced professional data-logging functionality. Part Number 66711 includes a 4GB microSD card and can record up to 100 parameters simultaneously for detailed performance analysis. Recorded logs can be played back directly on the iDash or exported to a computer for deeper analysis, making the Data Pro an excellent tool for evaluating vehicle performance, comparing modifications, diagnosing problems, or analyzing track and racing data. The system can also record up to 20 minimum/maximum values, allowing users to quickly review critical readings such as peak boost pressure or maximum coolant temperature. Bluetooth connectivity allows the iDash Data Pro to interface with the Banks mobile app for Apple and Android devices, simplifying gauge configuration, screen layouts, color themes, parameter definitions, and free over-the-air firmware updates. The iDash can also check and clear diagnostic trouble codes, monitor emissions readiness, create customizable visual alerts, and integrate with compatible Banks tuners, throttle controllers, sensors, and expansion modules through the Banks Bus Network. For enthusiasts who demand extensive real-time vehicle information and professional-level data logging in a compact package, the Banks Power iDash Data Pro Part Number 66711 delivers an exceptionally versatile performance monitoring solution.

Optional Banks Power Accessories

• I-Dash Mounting Sleeve Kit
• Single Gauge Pod Kit W/ Sticky Base
• Dual Gauge Pod Kit W/ Sticky Base
• OBDII Splitter Cable
• Pedal Monster Throttle Controller (Works in Conjunction with Gauge)

Key Features

• Banks Power iDash Data Pro® Standalone System
• Part Number 66711
• Universal standalone CAN-bus configuration
• Designed for 2008+ OBDII CAN-bus vehicles
• Standard 52mm (2-1/16-inch) gauge size
• Digital performance gauge and powertrain information center
• Professional vehicle data-logging system
• Includes 4GB microSD card for data logging
• Records up to 100 parameters simultaneously
• Playback recorded data logs directly on the iDash
• Export data logs to a computer for detailed analysis
• More than 300 parameters available
• Reads up to 80 OBDII CAN-bus Mode 01 values
• Displays 2-8 data readings simultaneously per screen
• Up to five customizable gauge screens
• Up to 40 gauge positions available across five screens
• Connect up to four iDash Pro gauges for expanded monitoring
• Monitor boost pressure
• Monitor exhaust gas temperature when supported
• Monitor engine coolant temperature
• Monitor transmission temperature when supported
• Monitor vehicle speed and additional OBDII parameters
• Displays real-time values that factory dashboards may filter
• Patented Banks OBDII Density measurements
• Calculates Ambient Air Density
• Calculates Boost Air Density
• Calculates Manifold Air Density
• Records up to 20 minimum/maximum values
• Customizable parameter alerts
• Check and clear vehicle diagnostic trouble codes
• Check emissions monitor readiness
• High-resolution display
• Ultra-wide viewing angles
• Vibrant high-contrast selectable color schemes
• English and Metric unit support
• Automatic display dimming
• Bluetooth connectivity
• Banks mobile app support for Apple and Android
• Configure gauges through mobile app
• Change gauge layouts and color themes through mobile app
• Free over-the-air firmware updates via Bluetooth
• Integrates with compatible Banks tuners, throttle controllers, and sensors
• Banks Bus Network compatibility
• Supports compatible Banks expansion modules and external sensors
• Fits standard 52mm (2-1/16-inch) gauge mounts
• Compatible with available Banks Stealth Pods and other appropriate gauge mounting solutions

Important Notes

• Banks lists Part Number 66711 for all compatible 2008+ OBDII CAN-bus vehicles.
• Available vehicle parameters and functionality vary by year, make, model, engine, and factory ECU support.
• Verify the parameters available for your specific vehicle before purchasing if monitoring a particular sensor or value is required.
• Part Number 66711 is the Banks iDash Data Pro® Standalone version and includes enhanced professional data-logging functionality.
• A 4GB microSD card is included for data logging.
• The iDash Data Pro can record up to 100 parameters simultaneously.
• Data logs can be played back directly on the iDash or exported to a computer for further analysis.
• Banks provides free online data viewing and charting through its DataLogViewer platform.
• The gauge can display up to eight readings at once and supports five customizable screens.
• Up to four iDash Pro gauges can be connected for additional simultaneous displays.
• The iDash Data Pro can access more than 300 available parameters, but the exact parameters available depend on the connected vehicle and optional sensor hardware.
• Banks states the system can read up to 80 OBDII CAN-bus Mode 01 values.
• Additional Banks sensors and expansion modules may be required to monitor parameters not available through the vehicle's factory OBDII network.
• Compatible add-ons include Banks analog, thermocouple, wideband O2, environmental, and other sensor modules.
• The iDash Data Pro fits standard 52mm (2-1/16-inch) gauge mounting locations.
• Vehicle-specific gauge pods and mounting accessories may be sold separately.
• Bluetooth connectivity is used for mobile app configuration and over-the-air firmware updates.
• Banks mobile app support is available for compatible Apple and Android devices.
• The iDash can check and clear diagnostic trouble codes and display emissions monitor readiness.
• Custom alerts can be configured for supported parameters to provide an earlier visual warning when predetermined values are reached.
• Banks' patented air-density calculations include Ambient Air Density, Boost Air Density, and Manifold Air Density.
• Banks lists an estimated installation time of approximately one hour.
• CARB Executive Order is not required for this product according to Banks.
• Professional installation is recommended when integrating additional sensors, modules, or custom mounting solutions.
